Off-Road Camping Trailer

A custom flat-fronted, tapered-prow box trailer. This record holds the design spec, the drawing workflow, the toolchain, and the project assets.

A welded steel box camper with a flat-fronted tapered nose. The body and nose are one continuous shell — the taper is in plan only; the form is full height throughout. Body 1500 × 1500 × 2000, 2500 overall, on a single off-road axle with externally-mounted wheels and a 550W roof solar panel.

Detailed spec

All dimensions in millimetres.

Main body

Width	1500
Height	1500
Length (rear box)	2000
Overall length	2500
Shell	continuous

Tapered prow

Nose depth	500
Flat front face	430 wide
Face height	1500 (full)
Position	centred
Taper plane	plan only

Running gear

Tyres	265/70/16
Diameter (approx)	~780
Axle from rear	800
Axle below base	100
Wheel mount	external / outboard

Doors (three)

Rear left leaf	900
Rear right leaf	600
Split	off-centre, full ht
Handles	2 × RV paddle
Front door	TBC

Roof — solar

Panel	550W
Typical size	2278 × 1134 × 35
Mount	flat, centred F–B

Trim (aluminium)

Edge (top/btm/sides)	25 wide
Vertical @ 2000 rear	25 wide
Belt @ 600 base	50 wide

Open items. Front-door description was never completed (location, size, full-height?). The 600-from-base belt line is flagged for confirmation — height, extent, or whether it wraps the tapered nose.

Drawing & render

For a dimensioned drawing the right tool is parametric CAD — AI image models approximate and will not hold exact millimetres. CAD draws the GA; the renderers handle photoreal.

Fusion 360

Parametric CAD — exact, editable GA drawings

autodesk.com
Recommended — the drawing

FreeCAD

Free / open-source parametric CAD

freecad.org

SketchUp + LayOut

Fast 2D plans / elevations

sketchup.com

Rayon

2D vector design for architects

rayon.design

D5 Render

Real-time ray-traced photoreal

d5render.com

Twinmotion / Unreal

Unreal real-time render, free tier

twinmotion.com

Veras

AI render inside Revit / Rhino / Fusion

evolvelab.io

Midjourney v7

Hero / marketing imagery only

midjourney.com

Prompt → 3D / render

Tools that take the written prompt (or one reference image from it) and output an editable 3D model or a photoreal still. Best-accuracy path is the callout below.

Prompt → editable 3D model (GLB / FBX / OBJ)

Meshy 6

Text & image → 3D, PBR, topology control. Exports GLB/FBX/OBJ.

meshy.ai
Used for the model below

Tripo AI

Fastest (~8s) text/image → 3D

tripo3d.ai

Rodin (3D AI Studio)

Most photoreal from text; rig/remesh

3daistudio.com

Autodesk Wonder 3D

Text & image → 3D in Flow Studio

autodesk.com

Sloyd

Parametric, game-ready 3D

sloyd.ai

Luma Genie

Text → 3D concept geometry

lumalabs.ai

Higgsfield generate_3d

Image → GLB. In your own stack.

higgsfield.ai

Prompt → photoreal still (not dimensional)

Nano Banana (Gemini)

Image-to-image; makes the reference image

gemini.google.com

Flux

High-fidelity text → image

blackforestlabs.ai

Krea

Real-time prompt → image

krea.ai

Leonardo

Image with product presets

leonardo.ai

Best-accuracy workflow. Detailed prompt → 1 reference image (Nano Banana) → image-to-3D (Meshy / Rodin) → export GLB → scale to exact mm in Blender → render in D5 / Twinmotion. One model, fully renderable, correctable.

3D model

First pass: Meshy text-to-3D from the spec prompt. Rejected — 0/10 against the brief.

Rejected first-pass mesh — Rejected first pass — archived, not the build geometry.

Why it fails (visual gate). The mesh is a rounded wagon blob: curved tumblehome body instead of a square full-height box; a scooped nose instead of the flat-fronted 430 tapered prow; vague embossed doors instead of the 900 / 600 off-centre barn pair; a flapping roof lid instead of a flat, centred solar panel. Text-to-3D held none of the hard dimensions.

Corrective path. One clean orthographic reference from the spec (Nano Banana) → image-to-3D (Meshy / Rodin) for geometry control → export GLB → scale to exact mm in Blender → render in D5 / Twinmotion. Or model the box directly in CAD.

Assets

Reference imagery

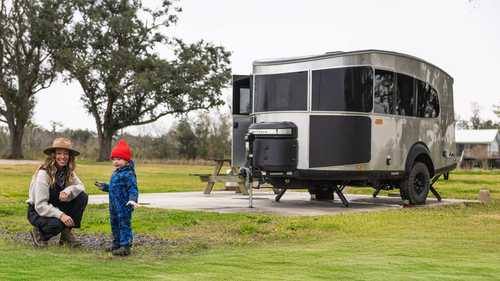

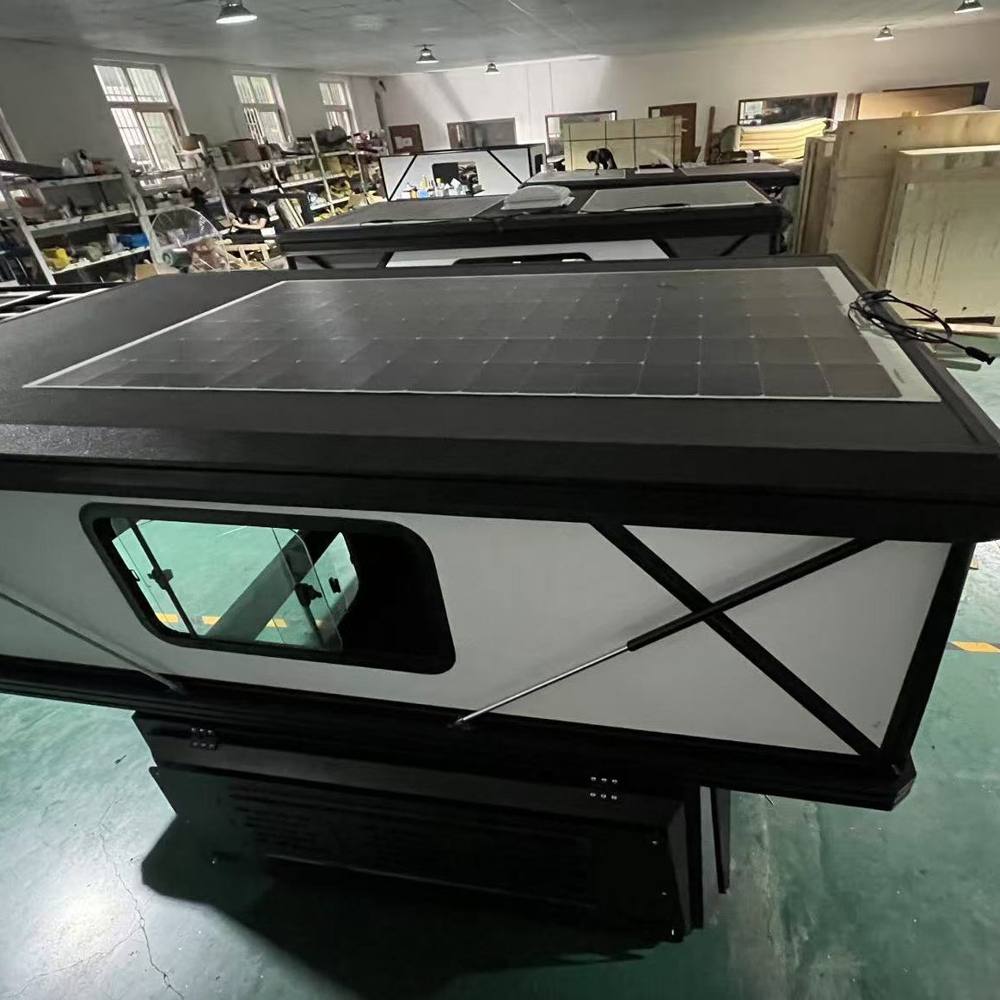

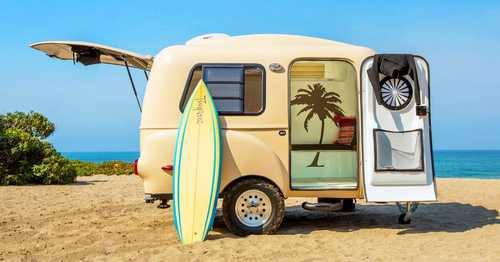

Form / detail comparators from the vault's camping-trailer vision library — references, not the build itself.

Build photos · previous render · Unreal Engine

Not found in the vault. No photographs of the actual trailer and no Unreal Engine project files are stored. The closest prior renders are the camping-trailer-vision form studies. Drop your photos/render into Articulate/microsites/trailer/images/ and they slot into the frames below.

YOUR TRAILER
PHOTO 1

YOUR TRAILER
PHOTO 2

PREVIOUS RENDER

UNREAL ENGINE

CAD GA DRAWING

+ ADD

Work log

Session startBrief: architectural drawing of the trailer. Sourced 550W panel dimensions; surveyed AI render + CAD tooling.
GeometryFlat-fronted tapered prow — 430 flat face, full height, centred; body + nose one continuous shell.
Running gear265/70/16 single axle, 800 from rear, 100 below base. Corrected: wheels external / outboard, not under the floor.
Openings & trimThree doors — rear barn pair 900 + 600 off-centre, full height, two RV handles. Edge / vertical / belt trim lines captured.
RoofSolar revised 400W → 550W (2278 × 1134 × 35), centred front-to-back.
ToolingHand-coded drawings drifted on precision. Decision: lock numbers in spec, model via prompt-to-3D, render in D5 / Twinmotion.
3D modelFirst mesh generated via Meshy text-to-3D from the spec prompt.
This siteSpec, toolchain, model and assets logged; shipped to house style.
